Read the Geometry
A shower sketch becomes useful only when the tile is finished
This Plan a New Glass Shower layout depends on blocking, curbs, walls, tile, fixtures, ventilation and access.
The drawing can guide conversations with the renovator, but final glass sizes follow the installed curb, wall tile, caps and fixture positions—not framing dimensions or a catalogue diagram.
giving the tile and glass teams compatible finished conditions Door movement and water direction should be tested against the completed room.
Layout Check
Confirm support, movement and water control
Each line in the enclosure has a job: carry glass, permit movement, manage splash or meet a finished surface.
Door movement
Trace the complete swing or sliding path and check toilets, vanities, towel bars and entry circulation.
Finished dimensions
Record blocking, curbs, walls, tile, fixtures, ventilation and access only for discussion; the accepted project receives its own field measurement.
Repair or Replacement
Use the layout to compare tradeoffs, not to self-order glass
Fewer panels and joints may suit the opening
A compact door-and-panel arrangement can reduce interfaces when support, access and splash control still work.
- Conditions verified
- Scope and responsibilities stated
- Dimensions confirmed before ordering
The room requires returns, notches or transitions
Additional pieces may solve a bench, half wall or corner, but each joint adds measurements and installation conditions to coordinate.
- Conditions verified
- Scope and responsibilities stated
- Dimensions confirmed before ordering
Configuration Reference
Use the diagram to discuss geometry—not to order glass
This simplified layout identifies the door and fixed-panel relationship. The accepted enclosure still depends on finished tile, support, door movement, water direction and field measurements.

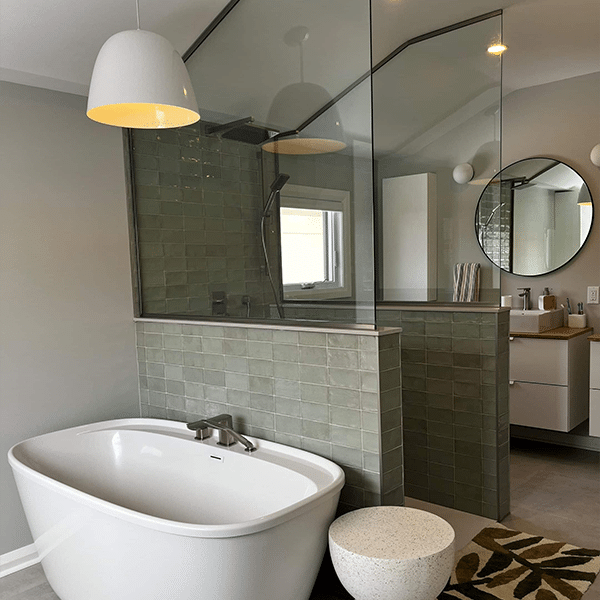

Photographs show how the configuration can look in a room; the diagram helps name the pieces before a project-specific drawing is prepared.
Questions to Resolve Early
Plan a New Glass Shower planning FAQ
Can this layout be used as an order drawing?
No. It is a planning pattern. Every enclosure requires field measurements of the completed opening and confirmation of support, hardware and door movement.
When is the opening ready to measure?
Tile, curbs, thresholds, benches, caps and other surfaces touching the enclosure should be complete and stable, with fixed fixtures installed where they affect clearance.
What should the hinge or pivot side provide?
The supporting wall and concealed construction must suit the proposed hardware. Share blocking information and renovation photographs when available.
How is splash managed?
Curb slope, shower-head direction, joints, door gaps and user behaviour all matter. Frameless enclosures manage water but are not sealed aquariums.
What dimensions are useful early?
Overall finished widths, heights, returns, half walls and notches support discussion. Accepted fabrication dimensions come from the project measurement.
