Shower Glass in Hamilton
Neo-Angle Pivot Shower Door
Use this an angled corner enclosure as a planning pattern, then verify every finished surface before glass is ordered.
Read the Geometry
A shower sketch becomes useful only when the tile is finished
This Neo-Angle Pivot Shower Door layout depends on angle consistency, curb footprint, panel widths and door approach.
The drawing can guide conversations with the renovator, but final glass sizes follow the installed curb, wall tile, caps and fixture positions—not framing dimensions or a catalogue diagram.
aligning several glass planes around a compact base Door movement and water direction should be tested against the completed room.
Layout Check
Confirm support, movement and water control
Each line in the enclosure has a job: carry glass, permit movement, manage splash or meet a finished surface.
Door movement
Trace the complete swing or sliding path and check toilets, vanities, towel bars and entry circulation.
Finished dimensions
Record angle consistency, curb footprint, panel widths and door approach only for discussion; the accepted project receives its own field measurement.
Repair or Replacement
Use the layout to compare tradeoffs, not to self-order glass
Fewer panels and joints may suit the opening
A compact door-and-panel arrangement can reduce interfaces when support, access and splash control still work.
- Conditions verified
- Scope and responsibilities stated
- Dimensions confirmed before ordering
The room requires returns, notches or transitions
Additional pieces may solve a bench, half wall or corner, but each joint adds measurements and installation conditions to coordinate.
- Conditions verified
- Scope and responsibilities stated
- Dimensions confirmed before ordering
Configuration Reference
Use the diagram to discuss geometry—not to order glass
This simplified layout identifies the door and fixed-panel relationship. The accepted enclosure still depends on finished tile, support, door movement, water direction and field measurements.

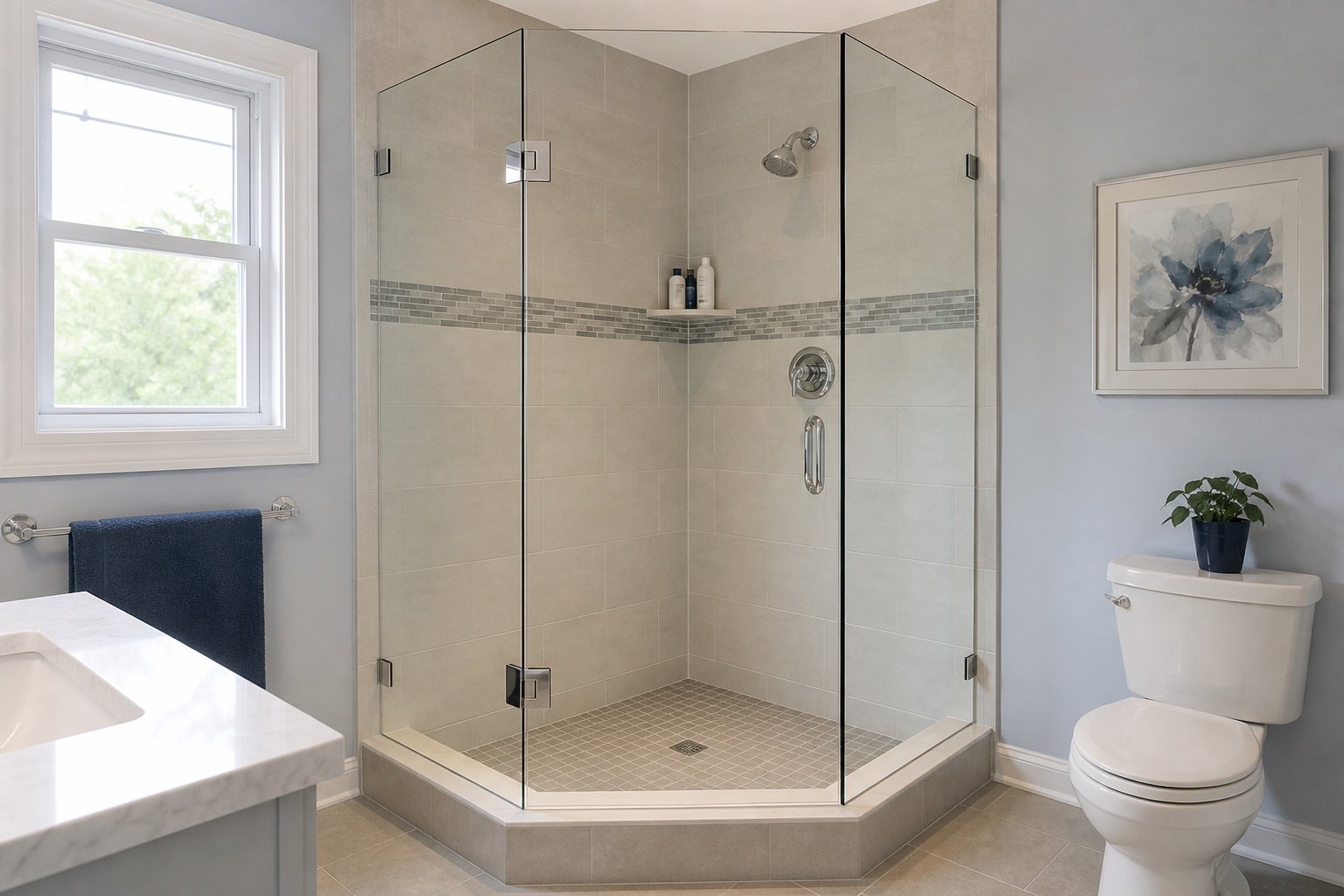

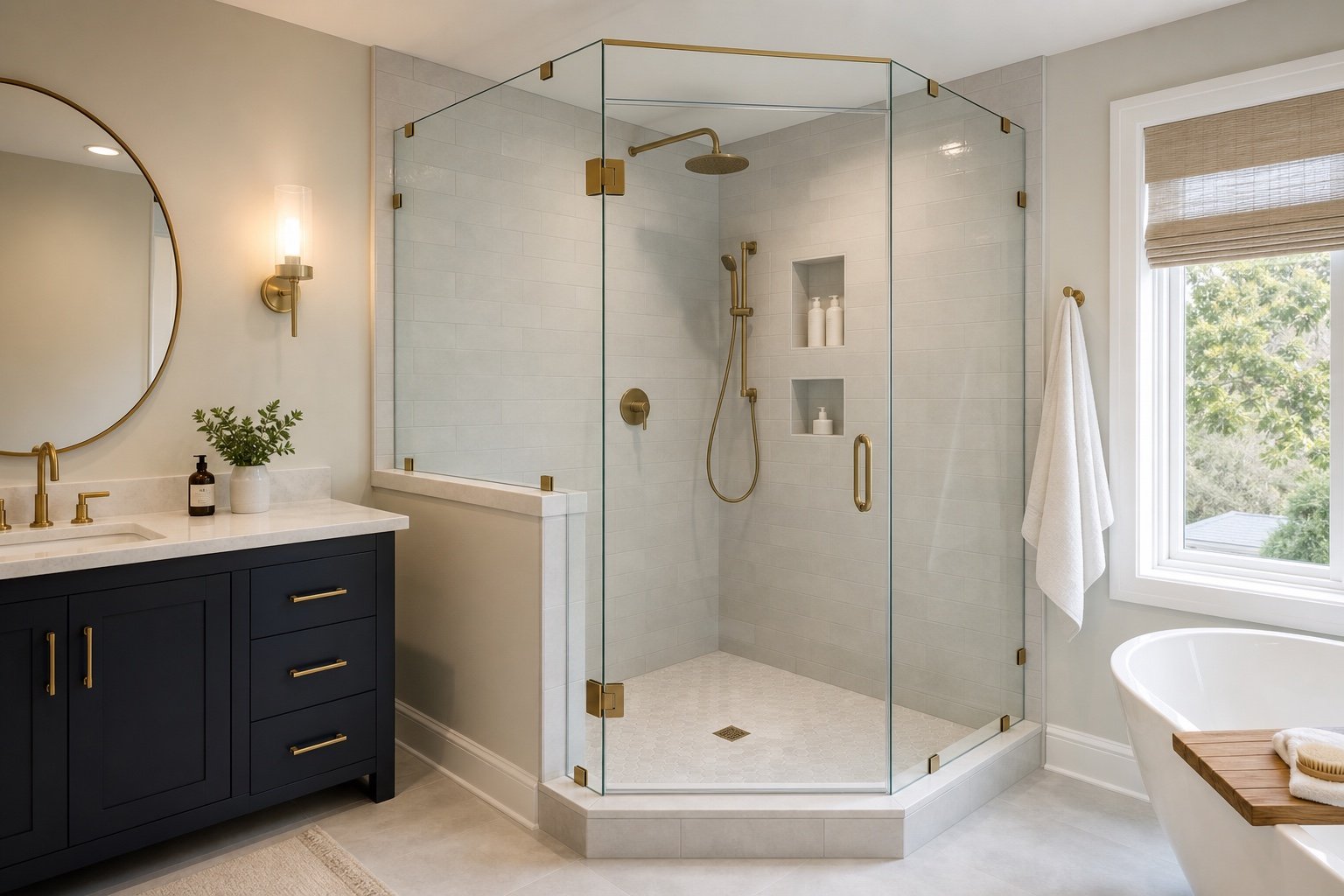

Photographs show how the configuration can look in a room; the diagram helps name the pieces before a project-specific drawing is prepared.
Questions to Resolve Early
Neo-Angle Pivot Shower Door planning FAQ
Can this layout be used as an order drawing?
No. It is a planning pattern. Every enclosure requires field measurements of the completed opening and confirmation of support, hardware and door movement.
When is the opening ready to measure?
Tile, curbs, thresholds, benches, caps and other surfaces touching the enclosure should be complete and stable, with fixed fixtures installed where they affect clearance.
What should the hinge or pivot side provide?
The supporting wall and concealed construction must suit the proposed hardware. Share blocking information and renovation photographs when available.
How is splash managed?
Curb slope, shower-head direction, joints, door gaps and user behaviour all matter. Frameless enclosures manage water but are not sealed aquariums.
What dimensions are useful early?
Overall finished widths, heights, returns, half walls and notches support discussion. Accepted fabrication dimensions come from the project measurement.
Quote Process
Carry the concept from renovation to field measurement
Choose a provisional layout while framing and blocking can still change.
Complete the curb, walls, tile, stone caps and fixed fixtures. Windows Hamilton can then review the actual geometry, door path and support.
The accepted enclosure is measured, quoted and approved before fabrication; installation follows once the custom glass is ready.
Quote Information
Get a QuoteSend the finished opening, not just the inspiration image
Send the property area, wide and detailed photos, approximate dimensions and preferred timing. For neo-angle pivot shower door, include drawings, labels or prior records that help define the opening. We will review the request and confirm any additional measurements or site information needed for a quote.
